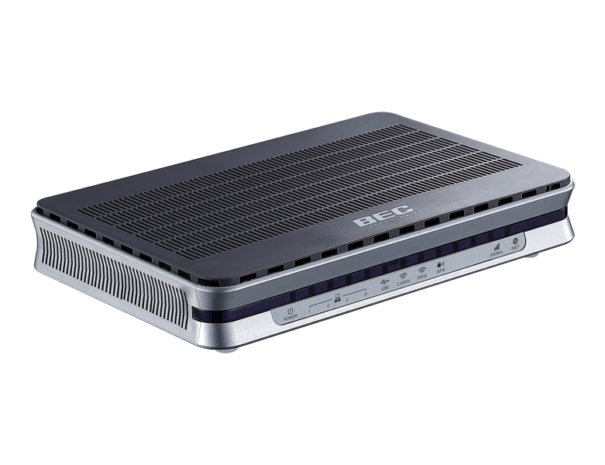

The BEC AirConnect® 8110 5G NR/LTE, Dual Mode router, provides operators the flexibility to deliver next-generation high-speed broadband service today for existing LTE networks and swiftly transition to 5G NR over sub-6 GHz.

The BEC AirConnect® 8110 features multi-WAN connectivity over 5G sub-6 GHz Non-Standalone (NSA) and Standalone (SA) modes, Gigabit LTE CAT 16 4×4 MIMO cellular connectivity, and a dedicated Gigabit EWAN interface. The LAN interfaces included a 4-port Gigabit Switch, dual-band 4×4 MU-MIMO Gigabit Wi-Fi, advanced networking, dynamic QoS, and robust firewall security. Operators striving for more flexibility and speed in network deployment now have a cost-effective, scalable platform to meet the ever-increasing demand for higher bandwidth.

Incredible Data Rates

• Peak data rates of 2.5 Gbps downlink and low latency for enhanced user experience

Multi-WAN Connectivity

• Dual WAN interface, can serve as primary all in one connection or drop-in secondary WAN failover for existing networks.

Instant Wireless Failover

• Actively monitors primary connectivity for fully automated failover ensuring “Always-On” connectivity

Superior Wireless LAN

• 802.11AC Wave 2 4×4 MU-MIMO Wireless LAN providing up to 2300 Mbps data rate (1700 Mbps in the 5 GHz band and 600 Mbps in the 2.4 GHz band)

Gigabit Wireline Speed

• 5 Gigabit Ethernet ports (4 LAN +1 WAN) delivering wire-speed performance for high-speed applications and services

Advanced Networking

• Integrated Dynamic Routing (BGP, OSPF), Secured VPN Termination (up to 40 simultaneous sessions}, automatic failover, load balancing, SPI Firewall, QoS, VLAN, and IPv6

Robust Protection and Security

• Integrated firewall with Stateful Packet Inspection (SPI), denial of service (DoS) mitigation, filtering, and parental control

Availability and Resilience

• Multiple WAN ports (4G/5G, ETH WAN, or Wireless )
• Load Balancing – Maximizing bandwidth of outbound traffic
• Automatic WAN failover

Supported Frequency Bands

• 5G NR Sub-6 GHz
  Comply 3GPP Rel.15
  Support Frequency Range 1 Bands (SA & NSA): n1 / n2 / n3 / n5 / n7 / n8 / n12 / n20 / n25 / n28 / n38 / n40 / n41 / n66 / n71 / n77 / n78
• 4G / LTE (Cat.16)
  Support Frequency Bands (FDD & TDD)
  FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B29 / B30 / B32 / B66 / B71
  TDD: B34 / B38 / B39 / B40 / B41 / B42 / B43 / B48
• Data Transmission
  5G NSA: DL 2.1Gbps / UL 900Mbps
  5G SA: DL 2.5Gbps / UL 650Mbps
  LTE: DL 1.0Gbps / UL 200Mbps
• 4G/LTE/5G SX Antenna
• 4G/5G Management Center in web-based GUI

Firewall

• Built-in NAT Firewall and Stateful Packet Inspection
• Prevents DoS attacks including Land Attack, Ping of Death, etc.
• Access Control
• IP / MAC / URL / Domain Filtering

Network Protocols and Features

• IPv4, IPv6, IPv4 / IPv6 dual-stack
• IPv6 in IPv4 (6RD) / IPv4 in IPv6 (DS-Lite) / IPv6-464XLAT
• NAT, static routing and RIP-1/2
• Universal Plug and Play (UPnP) compliant
• Dynamic Domain Name System (DDNS)
• Virtual server and DMZ
• SNTP, DNS relay, IGMP proxy, IGMP snooping, MLD proxy, and MLD snooping for video service
• Supports port-based Virtual LAN (VLAN)

Quality of Service Control

• Traffic prioritization based-on IP protocol, port number, and IP address
• Uplink and Downlink Bandwidth Control

Carrier-Grade Wireless LAN

• Compliant with IEEE 802.11 a/b/g/n/ac standards
• 802.11n 2.4GHz 3×3 & 802.11ac 5GHz 4×4 Wave2
• 5, 10, 20, 40, 80, 80+80, 160MHz Channel Bandwidth
• Up to 600Mbps (2.4GHz) & 1700Mbps (5GHz) speed
• 64/128 bits WEP supported for encryption
• Wireless security with WPA-PSK, WPA2-PSK, Mixed WPA/WAP2-PSK, (TKIP/AES), 802.1x/Radius
• AP, Client Bridge, and WDS Operational Modes
• Multiple SSID (4 SSIDs), BSSID, Band
• Wireless MAC filtering, Wireless Client Isolation
• Wi-Fi Hotspot with Captive Portal
• Dynamic, Wi-Fi client rate-limiting
• Supports up to 4 Spatial Streams & TX Beamforming
• Supports Hardware-based Airtime Fairness (QoS)

USB Application Server

• Storage: FTP server and Samba server

VPN/Tunneling (Optional)

• IPSec, OpenVPN, PPTP, L2TP VPN Tunneling
• GRE (up to 8 tunnels)
• Embedded PPTP / L2TP / IPSec / OpenVPN Client and Server
• IKE Key Management
• MPPE Encryption for PPTP
• IPSec DES, 3DES, and AES encryption

Management

• Quick Installation Wizard
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload and download via web-based GUI and over-the-air
• Supports DHCP server/client/relay
• TR-069 supports remote management
• BECentral® Cloud Management
• SNMP v1, v2, v3, MIB-I, and MIB-ll support
• Syslog monitoring
• SMS Control function for status and reboot

Physical Interface

• Power On/Off button
• Power Jack
• USB 2.0 : (1) port
• Ethernet LAN: 4-port 10/100/1000Mbps auto-crossover (MDI/ MDI-X) switch
  1 x Versatile Port (LAN#4 / WAN)
• SIM Card Slot (2FF)
• Reset button
• Wireless On/Off and WPS push button
• LED indicators

Physical Specifications

• Dimensions: 9.04″(W) x 6.10”(D) x 1.69″(H)
  (229.5 mm x 155 mm x 43 mm)

Power Requirements

• Input: 15V DC, 2.0A

Operating Environment

• Operating temperature: 32° to 104°F ( 0° to 40°C )
• Storage temperature: – 4° to 158°F ( -20° to 70°C )
• Humidity: 20 ~ 95% non-condensing
