AirConnect® 8230

5G NR/LTE Dual Mode Outdoor Router

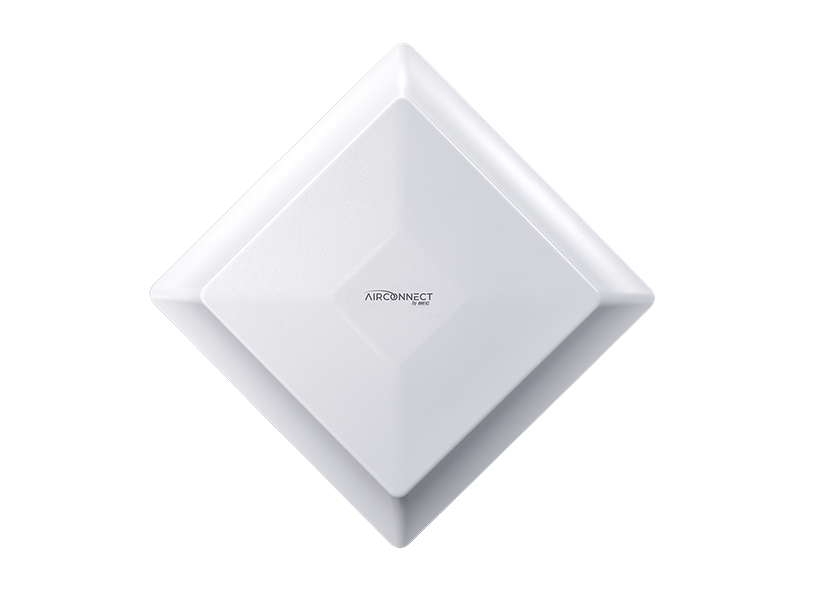

BEC AirConnect® 8230 5G NR/LTE Dual Mode Outdoor Router

The BEC AirConnect® 8230 5G NR/LTE, Dual Mode outdoor router, allows operators to unlock the full potential of Fixed Wireless Access (FWA). Today, many operators deploy FWA over 4G LTE networks; the AirConnect® 8230 can be deployed on those existing networks and support a seamless path to 5G NR for greater bandwidth and better spectral efficiency.

Designed for performance, the AirConnect® 8230 supports 5G sub-6 GHz Non-Standalone (NSA) and Standalone (SA) modes and Gigabit LTE CAT 16. The integrated high-gain 4×4 MIMO embedded dual-polarization / dual slant antenna technology offers efficient bi-directional transmission for increased capacity and coverage.

Incredible Data Rates

  • Peak data rates of 2.5 Gbps downlink and low latency for enhanced user experience

Multi-Element Adaptive Antenna

  • 4×4 MIMO Patented Dual-Pol Dual-Slant antenna technology ensures faster and efficient bi-directional transmission

Built to Last

  • IP-68/UL-50E Enclosure, complete protection against dust and water ingress

Ventilation

  • GORE® Vent for pressure equalization, humidity, and airflow

Wind Tunnel Tested

  • Successful Operation up to 132mph (F2 Tornado 113-157mph)

Surge /Lightning Protection

  • IEC 6100-4-2 (ESD) and IEC 61000-4-5 (Lighting)

Extended Temperature Range

  • -40°F to 140°F (-40°C to 60°C)

PoE Powered

  • Gigabit LAN Interface with IEEE 802.3at (PoE+) complaint

Corrosion Protection

  • SurTec treated Die-cast alloy

Form Factor

  • Under 5lbs, easily mount onto lightweight poles or exterior walls

Complete Kit

  • Packaged with Gigabit PoE Injector, mounting bracket, Flooded CAT5e, and ground wire

Supported Frequency Band

  • 5G NR Sub-6 GHz
    Comply 3GPP Rel.15
    Support Frequency Bands (FDD & TDD)
    5G NSA: n41 / n77 / n78
    5G SA: n1 / n2 / n3 / n5 / n7 / n8 / n12 / n20 / n25 / n28 / n38 / n40 / n41 / n48 / n66 / n71 / n77 / n78
  • 4G / LTE (Cat.16)
    Support Frequency Bands (FDD & TDD)
    FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B14 / B17 / B18 / B19 / B20 / B25 / B26 / B28 / B29 / B30 / B32 / B66 / B71
    TDD: B34 / B38 / B39 / B40 / B41 / B42 / B43 / B48
  • Data Transmission
    5G NSA: DL 2.1Gbps / UL 900Mbps
    5G SA: DL 2.5Gbps / UL 650Mbps
    LTE: DL 1.0Gbps / UL 200Mbps
  • 4G/LTE/5G SX Antenna
    2×2 and 4×4 MIMO Directional (Dual Polarization & Dual Slant)
    Frequency Range: 617-698MHz, 1710-2170MHz, 2300-2690MHz, and 3400-4000MHz
    Peak Gain up to 9dBi 4×4 MIMO
    4×4 MIMO
    5G DL: n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78
    LTE DL: B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42/B43/B48/B66
    2×2 MIMO
    5G UL: n41/n77/n78
    LTE DL: B5/B8/B12/B13/B14/B17/B18/B19/B20/B26/B28/B29/B32/B71
    LTE UL: All other bands
  • 4G/5G Management Center in web-based GUI

Quality of Service Control

  • Supports the DiffServ approach
  • Traffic prioritization based-on protocol, port number, and IP address

Network Protocols and Features

  • NAT, static routing and RIP-1/2
  • NAT supports PAT and multimedia applications
  • Virtual server and DMZ
  • SNTP, DNS relay and DDNS
  • IGMP snooping and IGMP proxy

Operational Modes

  • Router or Bridge

Management

  • Quick Installation Wizard
  • Web-based GUI for remote and local management
  • Firmware upgrade and configuration data upload & download via web-based GUI or BECentral®
  • DHCP server/client/relay
  • TR-069 supports remote management
  • BECentral® Cloud Management
  • SNMP and Syslog monitoring

Physical Interface

  • Gigabit LAN Interface with IEEE 802.3at compliant PoE P.D (25.5W)
  • SIM Card Slot: One (1), Mini-SIM (2FF)
  • LED Indicators: Power, LAN(PoE), LTE Signal Strength and Internet

Operating Environment

  • Operating temperature: -40°C to 60°C (-40°F to 140°F)

Surge/ESD Protection

  • Surge Protection: K.21 enhanced mode 6KV
  • ESD Protection: Contact: ± 8KV / Air: ±15KV
