S518

RidgeWave® S518

Unlicensed 5 GHz High-Gain Sector Antenna

The BEC RidgeWave® S518 5GHz Sector Antenna is a 4×4 dual-polarity MIMO sector antenna specially designed for use with the BEC 4700FWB, RidgeWave® 5GHz Base Station. The S518 operates at a high gain of 18 dBi in unlicensed bands from 5150-5850MHz with a 65 Deg. Beamwidth for exceptional RF performance in PtMP Base station applications.

  • Weatherproof Design for Outdoor Environments
    The UV-resistant enclosure is IP65 rated to withstand extreme weather conditions including sunlight, frost, snow, rainfall, and humidity for years of dependable operation.
  • Superior Wireless Performance
    4×4 MIMO Dual-Pol Sector Antenna provides high gain 18dBi and a wide beamwidth for high-capacity, multipoint networks.
  • Complete Mounting Kit

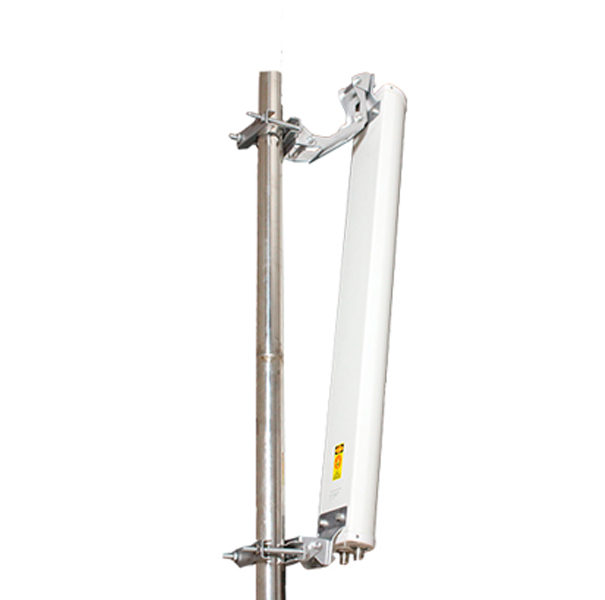

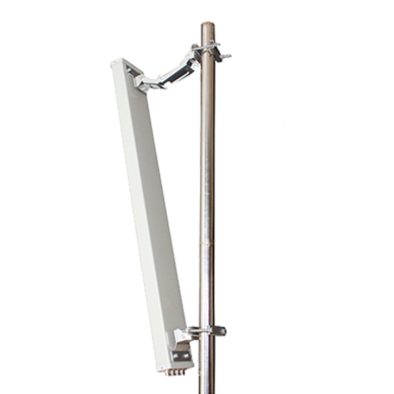

    This sector antennas come with heavy-duty stainless-steel tilt-and-swivel mounting brackets for simple, quick are secure installation. The kit includes four shielded low loss LMR 200 N Male to N Male cable assemblies for increased performance.

RF Specifications

  • Frequency Range: 5150 ~ 5850MHz
  • Polarization: Dual-Pol ± 45°
  • Gain: 18 x 4 dBi
  • VSWR: less than 1.6 dB
  • Input Impedance: 65 ± 5°
  • Horizontal Beamwidth: 7 ± 2°
  • Vertical Beamwidth: 7 ± 2°
  • Front to Back Ratio: > 28dB
  • Maximum Power: 50W

Mechanical Specification

  • Connector Interface: 4 x N-Female
  • Rated Wind Velocity: 140km/h (87mph)
  • Dimensions: 1000(L) x 128(W) x 58(T) mm
  • Weight: 3.5kg (7.71lbs)
  • Operating Temperature -40°C ~ +60°C (-40°~140°F)
