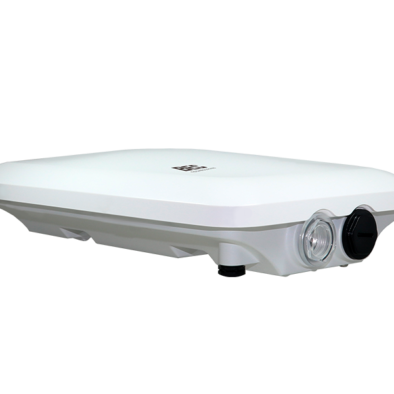

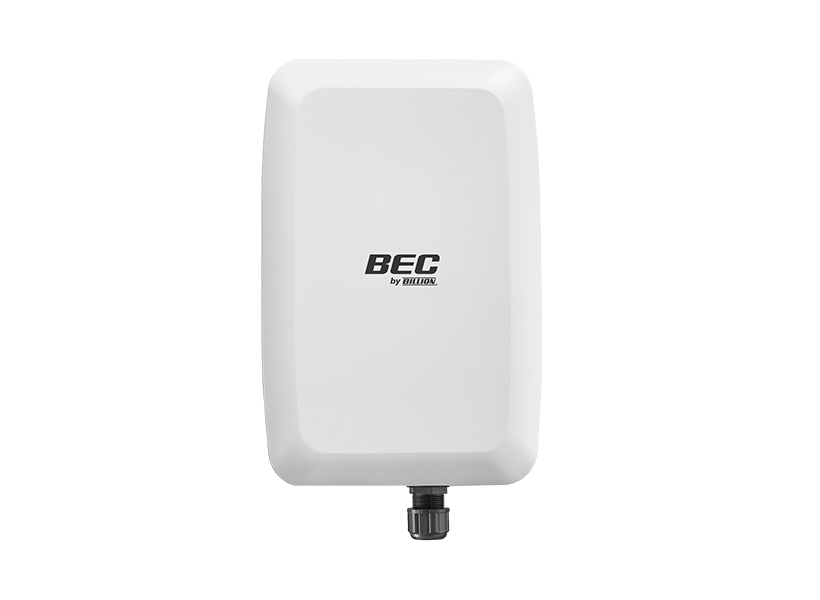

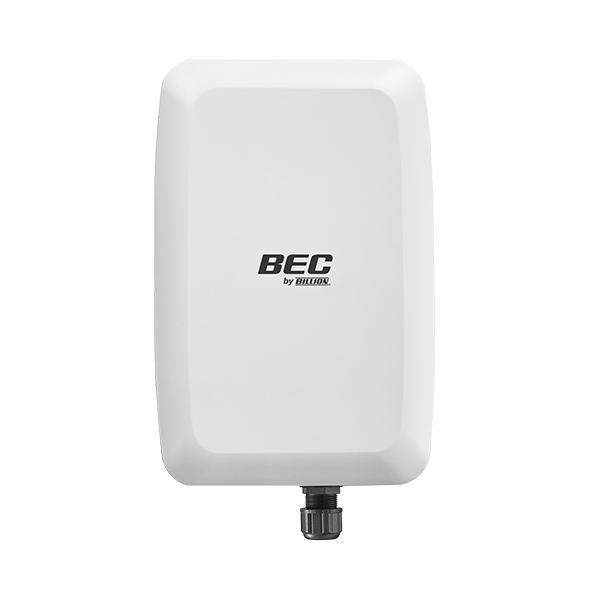

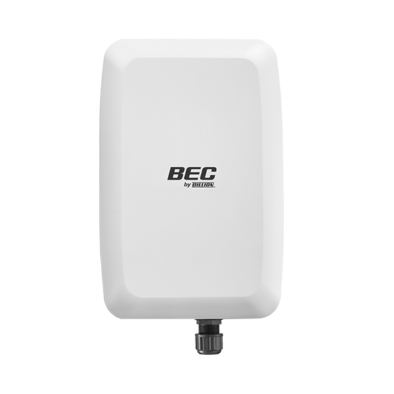

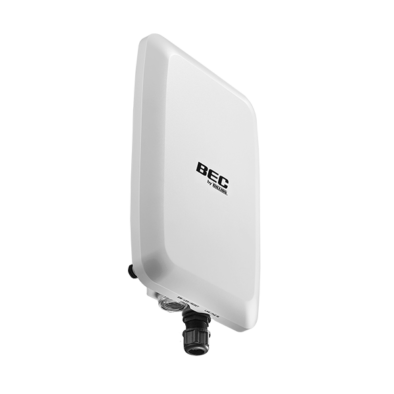

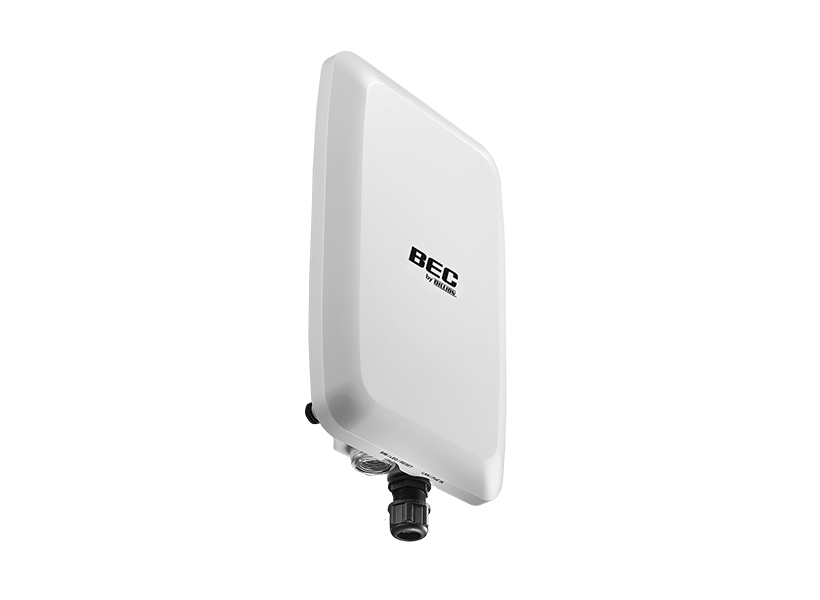

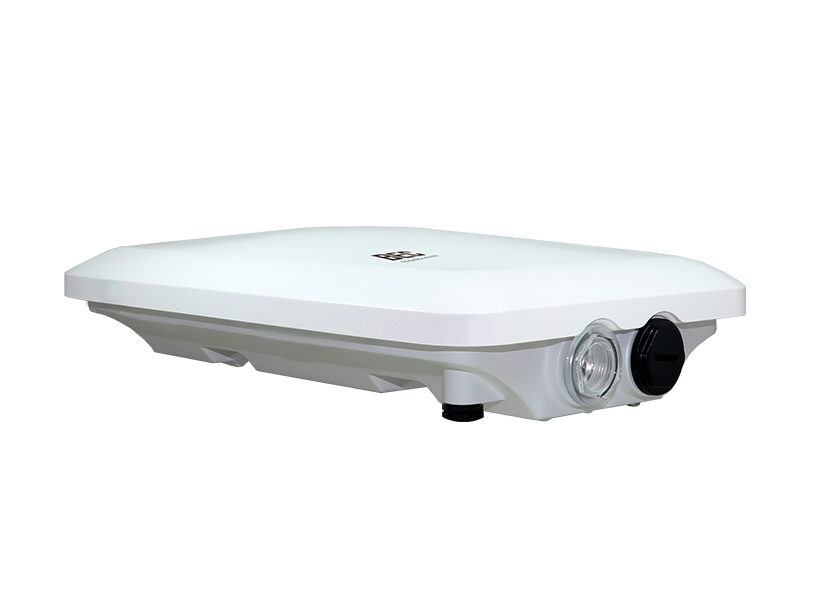

RidgeWave® 4900 5G
5G CBRS Outdoor Router
The RidgeWave® BEC 4900 5G CBRS Outdoor Router unlocks diverse fixed wireless access (FWA) market opportunities and provides subscribers with a broadband experience surpassing your rivals. Invest in technology innovation from BEC that enables the delivery of extreme data speeds, lower latencies, broader coverage, and increased network capacity.
The RidgeWave® 4900 5G allows providers to reap the most beneficial and anticipated capabilities of 3GPP Release 16 compliant 5G Standalone (SA) operation over n48 CBRS shared spectrum. In addition, the platform is designed for pure 5G greenfield standalone networks, yet offers the flexibility and migration path of existing 4G LTE networks.
Ideal Use Cases:
- Fixed Wireless Access (FWA)
- Last Mile Connectivity
- Mission-Critical & Performance Intensive Networks
- Industrial Connectivity Applications
- Urban and Rural Environments
- OnGo Certified Deployments
- Multi-Element Adaptive Antenna
Patented Dual-Pol dual polarization antenna technology ensures faster and efficient bi-directional transmission - Built to Last
IP-68/UL-50E Enclosure, complete protection against dust and water ingress - Ventilation
GORE® Vent for pressure equalization, humidity, and airflow - Wind Tunnel Tested
Successful Operation up to 132mph (F2 Tornado 113-157mph) - Surge /Lightning Protection
IEC 6100-4-2 (ESD) and IEC 61000-4-5 (Lighting) - Extended Temperature Range
-40°F to 140°F (-40°C to 60°C) - PoE Powered
Gigabit LAN Interface with IEEE 802.3at (PoE+) complaint - Corrosion Protection
SurTec treated Die-cast alloy - Form Factor
Under 5lbs, easily mount onto lightweight poles or exterior walls - Complete Kit
Packaged with Gigabit PoE Injector, mounting bracket, Flooded CAT5e, and ground wire
Certifications:
- 3GPP Release 16 Compliant
- FCC Part 96 Authorized EUD
Supported Frequency and Bands:
- 5G NR sub-6 GHz
Frequency Range 1 Band: n48
Carrier Aggregation: sub-6 GHz (TDD+TDD) - 4G / LTE (Cat.19)
TDD: B48
Carrier Aggregation: 5CA DL/ 2CA UL - BEC SX High-Gain MIMO Antenna
Directional (Dual Polarization & Dual Slant)
4×4 MIMO
2T4R Antenna Chain
Gain: 12 dBi ± 1 dBi - Modulation: 256QAM DL / 256QAM UL
Network Protocols and Features
- NAT, static routing and RIP-1/2
- NAT supports PAT and multimedia applications
- Virtual server and DMZ
- SNTP, DNS relay and DDNS
- IGMP snooping and IGMP proxy
Firewall
- Built-in NAT Firewall with stateful Packet Inspection (SPI)
- Prevents DoS attacks, including Land Attack, Ping of Death, etc.
- Access Control
- IP Filtering, MAC Filtering, URL Filtering
Operation Modes
- Bridge or Router
Quality of Service Control
- Supports the DiffServ approach
- Traffic prioritization based-on protocol, port number, and IP address
Management
- Quick Installation Wizard
- Web-based GUI for remote and local management
- Firmware upgrade and configuration data upload & download via web-based GUI or BECentral®
- DHCP server/client/relay
- TR-069 supports remote management
- BECentral® Cloud Management
- SNMP and Syslog monitoring

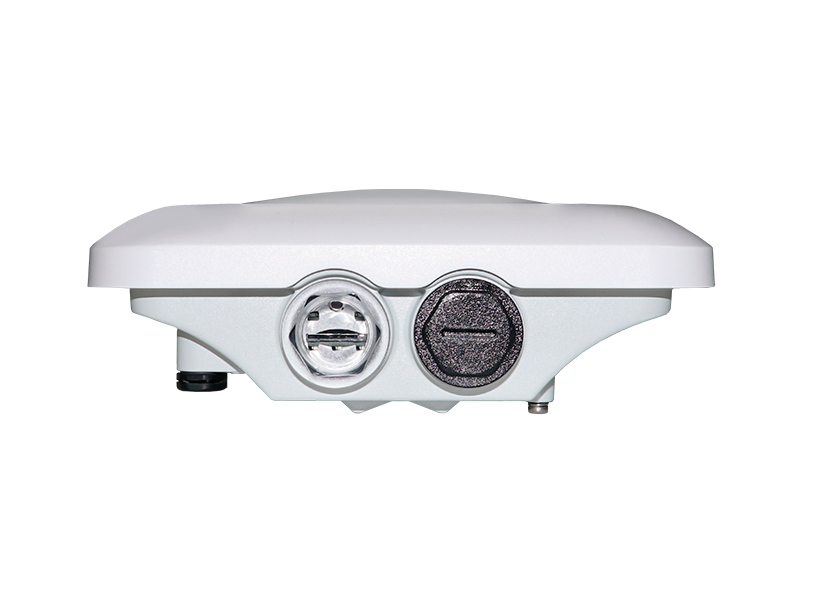

Physical Interface
- Gigabit LAN / PoE PD Interface
- SIM Card: One (1) slot 2FF Size
- LED Indicators: Power, Ethernet, LTE Signal Strength, and Internet
Power Specifications
- Input: Passive PoE-PD
Surge/ESD Protection
- Surge Protection: K.21 enhanced mode 6KV
- ESD Protection: Contact: ± 8KV / Air: ±15KV2
Physical Specifications
- Dimensions: 12.64″(L) x 8.27”(W) x 3.06″(D) (321mm x 210 mm x 77.6 mm)
Operating Environment
- Operating temperature: -40°C to 60°C (-40° F to 140° F)
