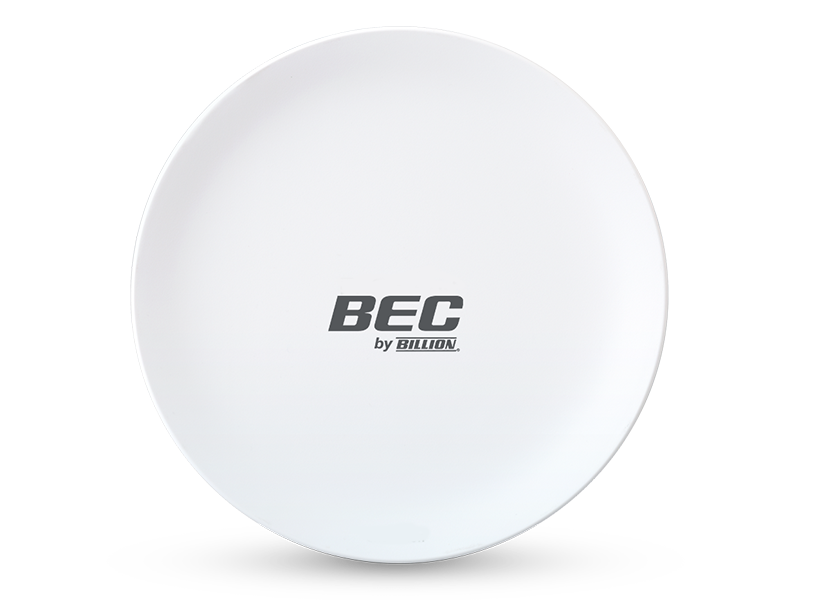

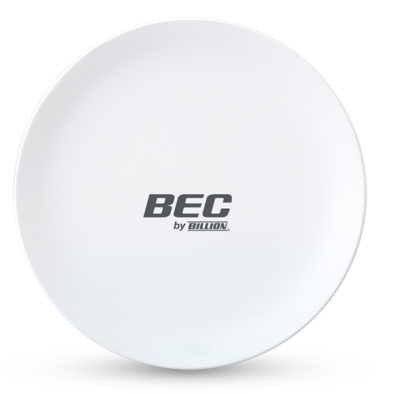

AirConnect® 8355P

• Install Anywhere
  Modular design enables optimal location mounting for the best signal. There is standard desktop placement, indoor and outdoor window mounting, and additional options for wall or pole mounts.
• Subscriber Self-Installation
  Many subscribers enjoy the convenience and flexibility of indoor and outdoor self-installation with mobile application-guided setup. Operators benefit from reduced operational costs and faster deployments!
• Superior Performance
  Powerful multi-core CPU along with sub-6 GHz carrier aggregation up to 4CA DL and 2CA UL delivers ultra-high data rates and lower latency for the ultimate subscriber experience.
• Elite Wi-Fi Performance
  Equipped with 802.11 ax Wi-Fi 6 technology for faster speeds, greater capacity, and reduced network congestion, offering a transformative wireless experience.
• Advanced MIMO Antenna Technology
  Industry-leading Integrated high-gain 4×4 MIMO dual-polarization/dual slant antenna technology offers efficient bi-directional transmission for increased capacity and coverage regardless of placement.
• Compact Weatherproof Design
  Designed with industrial-grade components, the compact weatherproof enclosure is IP65 rated for full protection against dirt, dust, and water ingress.
• Managed by BECentral® CloudEdge
  Managed by BECentral®, an industry-leading cloud-based service platform, to accelerate 5G Wireless WAN connectivity for deployments of any scale and extend network visibility at the edge.

Supported Frequency Bands

3GPP Rel.16 Compliant

5G NR sub-6 GHz

• Support Frequency Band (SA & NSA): n2, n5, n7, 12, n14, n25, n26, n29(SA only), n30, n38, n41, n48, n66, n70, n71, n77, n78
• Carrier Aggregation: 4CA DL / 2 CA UL (FDD+FDD, TDD+TDD, FDD+TDD)
• Channel Bandwidth: Up to 300 MHz bandwidth
• Modulation: 256QAM DL / 256QAM UL

4G/LTE (CAT 19 DL / CAT 18 UL)

• Support Frequency Bands: 2, 4, 5, 7, 12(17), 13, 14, 25, 26, 29, 30, 38, 41, 42, 43, 46, 48, 66, 71
• Carrier Aggregation: 5CA DL / 2CA UL
• Channel Bandwidth: 1.4/3/5/10/15/20 MHz
• Modulation: 256QAM DL / 64QAM UL

BEC SX High-Gain MIMO Antenna

• 4×4 MIMO DL / 2×2 MIMO UL
• 2T4R Antenna Chain
• Omni-Directional (617-2700MHz)
• Maximum Peak Gain: 5 dBi
• Directional (3300-4200MHz)
• Maximum Peak Gain: 10 dBi

Quality of Service Control

• Supports the DiffServ approach.
• Traffic prioritization based on protocol, port number, and IP address.

Operational Modes

• Router or Bridge

Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
• Maximum PHY-Data Trasmission Rates:
  5 GHz: 1201 Mbps (802.11ax)
  2.4 GHz: 574 Mbps (802.11ax)

Network Protocols and Feature

• NAT, static routing and RIP-1/2
• NAT supports PAT and multimedia applications
• Virtual server and DMZ
• SNTP, DNS relay and DDNS
• IGMP snooping and IGMP proxy

Setup and Installation

• Via Wi-Fi with Mobile App or local interface

Management

• Quick Installation Wizard
• Web-based GUI for remote and local management
• Firmware upgrade and configuration data upload & download via web-based GUI or BECentral®
• DHCP server/client/relay
• TR-069 supports remote management
• BECentral® CloudEdge
• SNMP and Syslog monitoring

Hardware Specification

Physical Interface

• (1) 2.5 Gigabit Ethernet PoE
• SIM Card Slot: (1) Mini SIM and embedded SIM (eSIM)

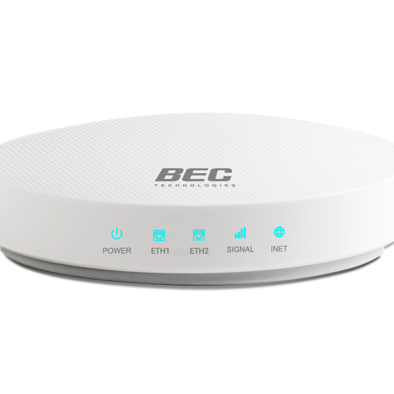

• LED Indicators: Power, LAN (PoE), LTE Signal Strength, and Internet

Operating Environment

• Operating temperature: – 40° to 140° F (- 40° to 60° C)

Dimensions and Weight

• 5″ (D) x 1.5″ (H) (215mm x 38 mm)
• 1 lbs. (460g)

IP Rating

• IP65
