ES 4016GP-4SFP
ES 4016GP-4SFP
20-Port Industrial Managed PoE+ Gigabit Ethernet Switch

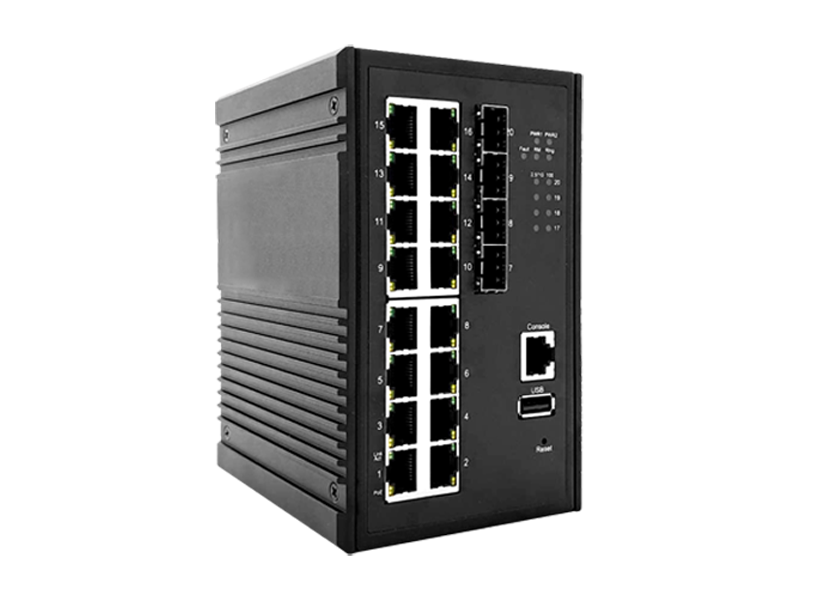

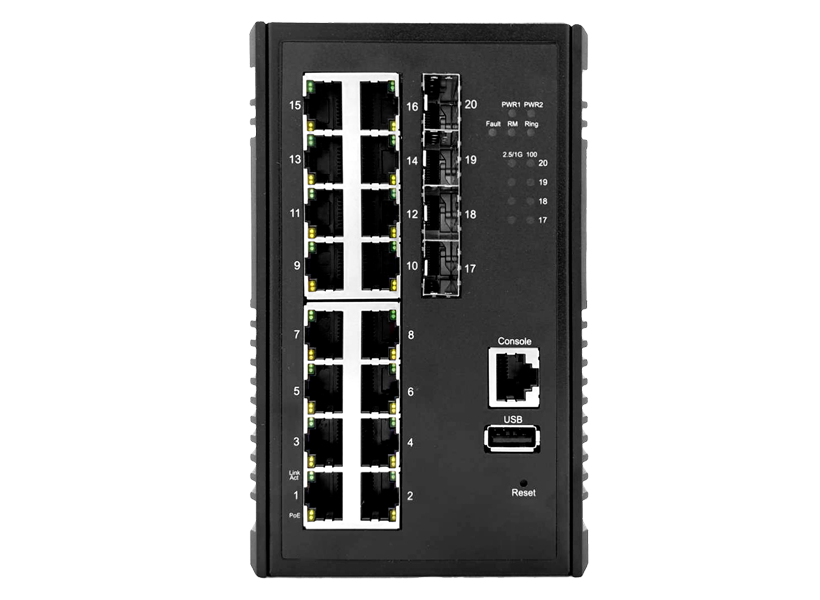

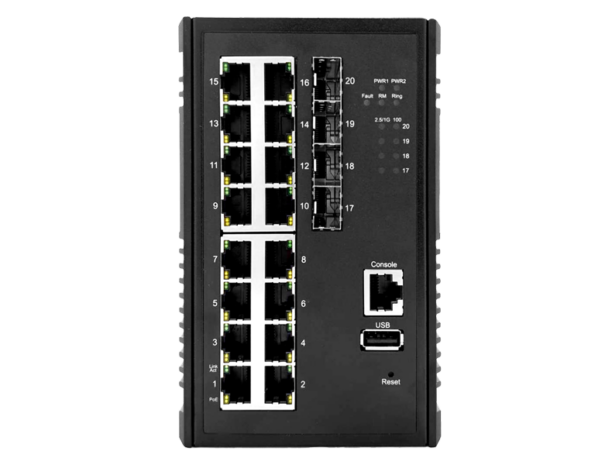

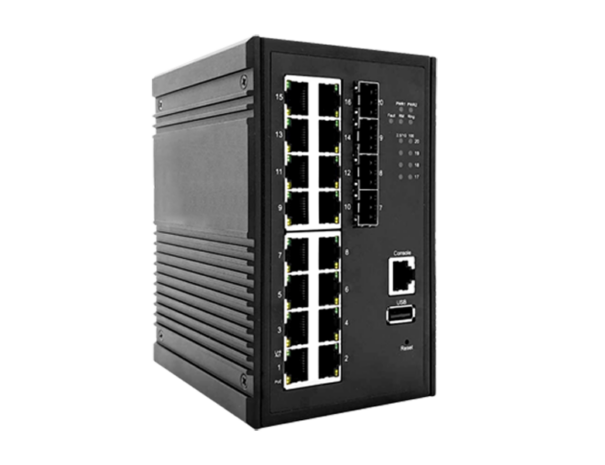

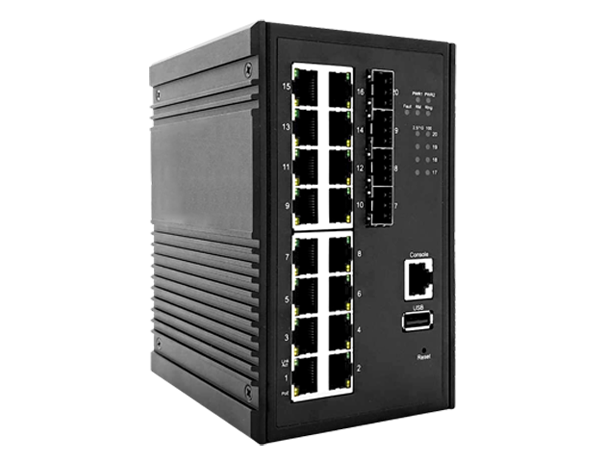

The BEC ES 4016GP-4SFP is a 20-port industrial managed PoE+ Gigabit Ethernet switch designed for high-density edge networking in harsh environments. It combines 16 Gigabit PoE+ Ethernet ports with 4 Gigabit SFP uplink slots, delivering the performance and flexibility needed to support connected industrial devices, security systems, wireless infrastructure, and automation networks.
Engineered for rugged deployments, the ES 4016GP-4SFP features an IP30-rated metal enclosure, DIN-rail mounting, dual redundant 48–57VDC power inputs, and an extended operating temperature range of -40°C to 75°C. With a 240W total PoE budget and up to 30W per port, it simplifies installation by powering connected devices directly over Ethernet.
To support dependable industrial communications, the switch includes advanced management and resiliency features such as RSTP, MSTP, ERPS, LACP, QoS, IGMP Snooping, DHCP Relay Option 82, SNMP, and storm protection. It also supports key industrial automation protocols including EtherNet/IP, Modbus TCP, and Profinet, along with USB-based configuration backup and replacement and PoE PD Alive Check for improved uptime and simplified field maintenance.
- Eight Gigabit Ethernet ports with IEEE 802.3at PoE+
- Incorporates two 1000F(x) SFP slots for versatile fiber optic connections.
- Implements RSTP, MSTP, ERPS, and LACP to enhance network redundancy.
- Utilizes QoS CoS/DSCP to improve determinism in data transmission.
- Supports IGMP Snooping v1/v2/v3, accommodating up to 512 groups.
- Features DHCP Relay Option 82 for policy-based IP address assignment.
- Employs SNMP v1/v2c/v3 for effective network management.
- Compatible with industrial automation protocols such as Ethernet/IP and Modbus TCP.
- Implements PoE PD Alive Check Function for PoE Device Power Recycle
- Equipped with USB storage for configuration-free replacement.
- Implements Storm Protection for network stability.
- Designed to withstand harsh environments and wide temperature ranges
- Dual redundant inputs supporting a voltage range of 48-57VDC.
- Provides Storm Protection support
◼ Technology
Standard
- IEEE 802.3 10BaseT
- IEEE 802.3u 100BaseTX
- IEEE 802.3ab 1000BaseT
- IEEE 802.3z 1000BaseX
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy-Efficient Ethernet
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at PoE+
- IEEE 802.3ad/802.1AX LACP
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid STP
- IEEE 802.1s Multiple STP
- ITU-T G.8032 / Y.1344 ERPS
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1ad Stacked VLANs
- IEEE 802.1p Class of Service
- IEEE 802.1X Network Authentication
- IEEE 802.1AB LLDP
Processing Type
- Store and Forward
◼ Switch Properties
- Priority Queues: 8 Queues
- Jumbo Frame: 12000 bytes
- MAC Table Size: 16K
- VLAN Table Size: 4094
- IGMP Group: 1023
- Packet Buffer: 12 Mbits
◼ Software Feature
- Network Redundancy: RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP
- Security: 802.1X, RADIUS, TACACS+, SSL, SSH
- Management: IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP
- Diagnostics: RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP
- Configuration: DHCP Server/Client, Relay Option 82, TFTP, USB
- Filter: 802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning
- Time Sync.: NTP, IEEE1588v2 OC (Software Timestamp), TC (Hardware Timestamp)
- QoS: CoS, DSCP, WRR/SPQ Queuing, Storm Protection
- PoE: Powering Status, PoE Monitoring, Scheduling, PD Alive Check
- Industrial Profiles: Ethernet/IP, Modbus TCP, Profinet
◼ Interface
RJ45 Port
- 8x 10/100/1000T(x) with PoE+, auto-negotiation speed duplex mode, auto MDI/MDI-X
Fiber Port
- 2x 1000F(x) SFP Slot
PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6, Endspan, MDI Mode A
LED Indicators
- Per unit: PWR1, PWR2, Fault, Ring Master, Ring State
- Ports: Link/Active with highest speed(Green), low speed(Amber)
- PoE: Output Power
Alarm Contact
- 1x relay output with current carrying capacity of 1A @ 24 VDC
Digital Inputs
- 1x isolated input from the electronics.
- +13 to +30V for state “1”
- -30 to +3V for state “0”
- Max. input current: 8mA
Button
- Multiple functions reset button
Serial Console
- 1x RS232 in RJ45 connector with console cable, 115.2Kbps, 8N1
Storage
- 1x USB 2.0 storage for firmware update, configuration backup, restore, boot up and syslog
◼ Power Requirements
- Operation Voltage: 48-57VDC, redundant dual inputs
- Connection: 1x removable 4-contact terminal block
- Power Consumption: 0.32A@48VDC without PDs’ consumption
- PoE Power Budget: Max. 240 W for total PD consumption, Max. 30 W per PoE port
- Protection: Overload Current Protected, Reverse Polarity Protected
◼ Mechanical Construction
- Enclosure: Aluminum
- Protection Class: IP30
- Dimensions: 72x145x118 mm (WxHxD)
- Weight: 0.88 kg
- Mounting: DIN-Rail Mounting, Optional Wall Mounting Kits
◼ Environmental Limits
- Operating Temperature: Extended -40°C ~ 75°C (-40°F ~ 167°F)
- Storage Temperature: -40°C ~ 85°C (40°F ~ 185°F)
- Ambient Relative Humidity: 5 to 95%, (Non-Condensing)
◼ Regulatory Approvals
EMI
- CE EN 55032 Class A
EMS
- IEC61000-4-2 (ESD)
- IEC61000-4-3 (RS)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (Surge)
- IEC61000-4-6 (CS)
- IEC61000-4-8 (Magnetic Field)
Free Fall
- IEC60068-2-32
Shock
- IEC60068-2-27
Vibration
- IEC60068-2-6
Green
- RoHS Compliant
Certifications
- UL 60950-1/62368 (Pending)
- 61000-6-2
- 61000-6-4
- EN 50121-4
MTBF >100,000 hours
