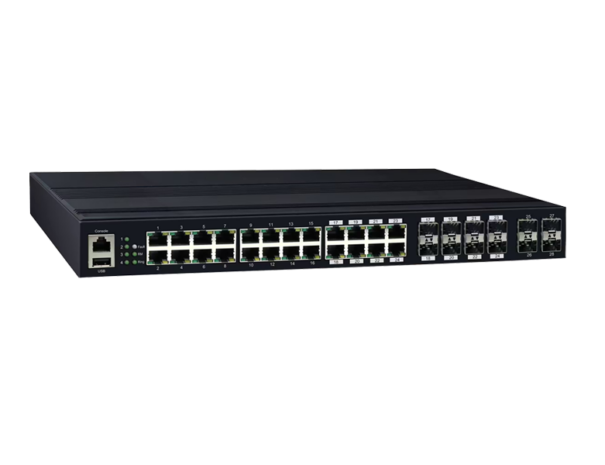

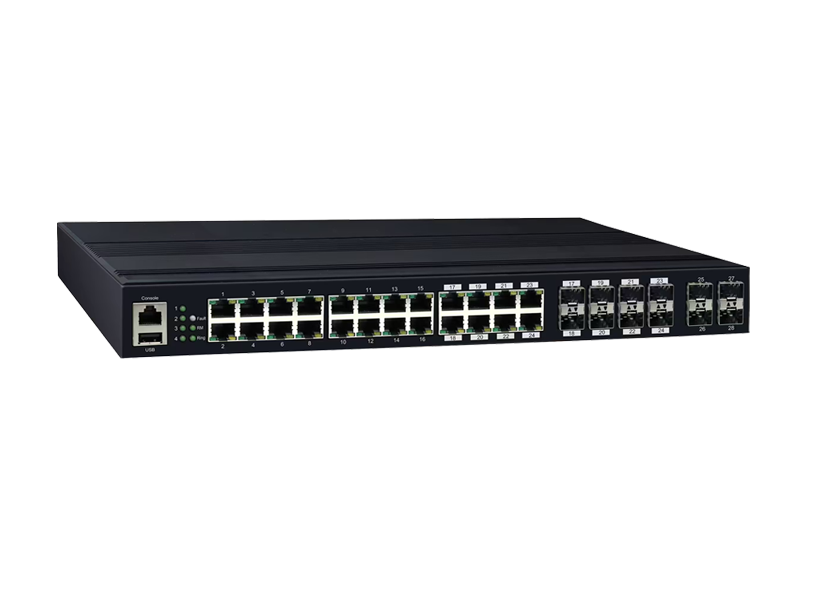

ES 7124G8C-4SFP
16+8+4 Port Industrial Managed Gigabit Ethernet Switch
The BEC ES 7124G8C-4SFP is a 16+8+4 port industrial managed Gigabit Ethernet switch designed for high-density copper, combo, and fiber connectivity in industrial, utility, and automation networks. It provides 16 Gigabit RJ45 ports, 8 Gigabit Ethernet/SFP combo ports with auto media detection, and 4 Gigabit SFP slots for flexible rack-mounted deployments.
Designed for demanding environments, the ES 7124G8C-4SFP features an IP30-rated rack-mount metal enclosure, redundant AC/DC power input support, and an extended operating temperature range of -40°C to 85°C. Compliance with IEC 61850-3 and IEEE 1613 makes it well suited for substations, utility networks, and critical infrastructure environments that require rugged, standards-aligned Ethernet switching.
The ES 7124G8C-4SFP includes advanced management and resiliency features such as RSTP, MSTP, G.8032 ERPSv2, LACP, VLAN, QoS, IGMP Snooping, DHCP Relay Option 82, SNMP, RMON, Syslog, LLDP, RSPAN, and time synchronization. USB-based configuration backup and restore supports simplified field replacement, while EtherNet/IP, Modbus TCP, and Profinet support enable integration with industrial automation systems.
- 16 Gigabit RJ45 Ethernet ports for high-density copper connectivity.
- 8 Gigabit Ethernet/SFP combo ports with auto media detection.
- 4 1000F(x) SFP slots for fiber uplink and aggregation connections.
- Compliant with IEC 61850-3 and IEEE 1613 for utility and substation environments.
- 56Gbps switch fabric with 16K MAC table support.
- 9216-byte jumbo frame support.
- RSTP, MSTP, G.8032 ERPSv2, and LACP for network redundancy.
- QoS with CoS, DSCP, WRR/SPQ queuing, and storm protection.
- IGMP Snooping v1/v2/v3 with support for up to 512 groups.
- DHCP Server/Client and DHCP Relay Option 82 for policy-based IP address assignment.
- SNMP v1/v2c/v3, Web, CLI, Telnet, serial console, and IPv4/IPv6 management.
- Security features including 802.1X, RADIUS, TACACS+, SSL, and SSH.
- USB storage for firmware updates, configuration backup/restore, boot up, and syslog.
- Supports EtherNet/IP, Modbus TCP, and Profinet industrial profiles.
- Extended -40°C to 85°C operating temperature range.
- 5-year warranty.
