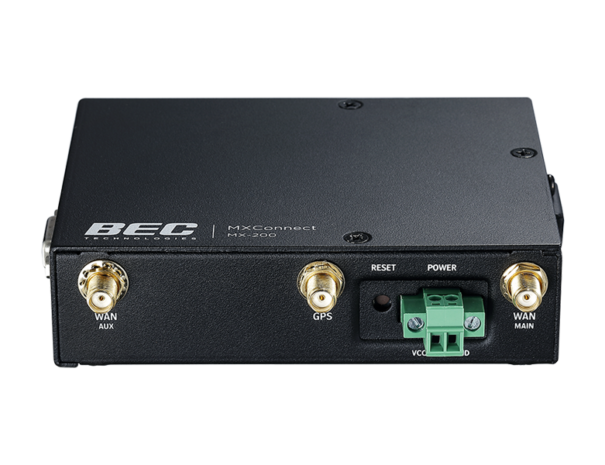

MX-320 Series
MX-320 Series
Advanced Industrial 5G RedCap Routers
The BEC MXConnect® MX-320 Series brings practical 5G RedCap connectivity to industrial and enterprise edge networks that require reliability, security, and long-term cellular availability without the overhead of full-scale 5G. Purpose-built for M2M, IoT, SCADA, utility, and remote asset connectivity, it delivers the right balance of 5G performance, lower power operation, compact design, and deployment flexibility.
As LTE networks continue to evolve and industrial applications move toward 5G Standalone, the MX-320 Series provides a future-ready bridge between legacy LTE deployments and next-generation 5G infrastructure. Support for 5G SA RedCap, LTE Cat 4, dual Gigabit Ethernet, Ethernet WAN, RS-232 serial, Active GPS, dynamic routing, VPN, QoS, firewall, and automatic failover makes it ideal for field-area networks, remote monitoring, serial-to-IP, backup WAN, and private wireless deployments.
With global frequency band support, including Anterix, FirstNet®, CBRS, and private 5G networks, the MX-320 Series delivers the spectrum flexibility needed to support a wide range of use cases and deployment environments.
Managed by BECentral®, the MX-320 Series gives organizations centralized control over distributed routers, helping improve uptime, simplify operations, and accelerate deployments across industrial sites, utility networks, enterprise locations, and unattended assets.
Ideal Applications
- Private 5G / Private LTE
- Industrial IoT
- SCADA
- Remote Monitoring and Control
- Utility Field Networks
- Primary or Backup Connectivity
- Serial-to-IP Connectivity
- Out-of-Band Management
- Kiosks, ATMs, and Unattended Equipment
- Digital Signage and Remote Assets
- 5G RedCap Connectivity
The MX-320 Series supports 3GPP Release 17 RedCap, delivering efficient 5G SA connectivity for industrial IoT, SCADA, utility, and enterprise applications that do not require full 5G eMBB performance.
- Dual-WAN Interfaces
5G SA and Ethernet WAN support provide high availability, network resilience, automatic failover, fallback, and flexible deployment options for primary and backup connectivity.
- Enterprise Class Routing and Secured VPN
Dynamic routing with OSPF and BGP, combined with secured VPN support including IPSec, GRE, L2TP, PPTP, and OpenVPN, enables secure and flexible network integration.
- RS-232 Serial Interface
The integrated RS-232 interface enables serial device connectivity over IP, including Modbus/TCP applications and out-of-band management for remote equipment access.
- Active GPS
Active GPS enables real-time location tracking for location-based services or export of positioning data in NMEA format.
- Ultra-Compact and Industrial-Grade Design
The MX-320 Series fits in the palm of your hand, simplifying deployments in space-constrained cabinets, enclosures, kiosks, and remote equipment locations.
- Rugged / Hardened Design
Industrial-grade components, extended operating temperature range, and flexible 9V to 56V DC input help support demanding field deployments.
- Managed by BECentral® CloudEdge Service Platform
BECentral® CloudEdge is an industry-leading cloud-based service platform designed to accelerate 5G and LTE Wireless WAN connectivity for deployments of any scale. The platform enables zero-touch provisioning and provides visual dashboards with real-time analytics, detailed reporting, historical analysis, performance monitoring, proactive alerts/notifications, and API extensibility for 3rd party integration.
Network Certification (Planned): AT&T, FirstNet, T-Mobile, Verizon
Model Variants
- MX-320: Standard model with serial and GPS
- MX-320A: Variant without serial or GPS
Availability and Resilience
- Multiple WAN ports (5G SA or Gigabit EWAN)
- Load Balancing – Maximizing bandwidth of outbound traffic
- Automatic WAN failover
Supported Frequency Bands
5G SA sub-6 GHz
- Comply with 3GPP Rel.17
- Support Frequency Range 1 Bands (SA):
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20,
n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71,
n77, n78, n79 - Channel Bandwidth: Up to 20 MHz bandwidth
- Modulation: 256QAM DL / 64QAM UL
4G / LTE (Cat.4)
- Support Frequency Bands (FDD & TDD):
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14,
B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39,
B40, B41, B42, B43, B48, B66, ,B70, B71, B106 - Channel Bandwidth: Up to 20 MHz bandwidth
- Modulation: 256QAM DL / 64QAM UL
Transmitting Power
- 5G SA bands: Class 3 (23 dBm ±2 dB)
- LTE bands: Class 3 (23 dBm ±2 dB)
- LTE HPUE bands: B41 &B42 Class 2 (26 dBm ±2 dB)
Data Transmission
- 5G SA Peak Data Rates: 223Mbps DL / 123Mbps UL
- 4G/LTE Peak Data Rates: 200Mbps DL / 105Mbps UL
(The presented data rates are theoretical only)
Network Protocols and Features
- IPv4, IPv6, IPv4 / IPv6 dual stack
- IPv6 in IPv4 (6RD) / IPv4 in IPv6 (DS-Lite) / IPv6-464XLAT
- Dual APN
- Keep Alive
- NAT, static routing and RIP-1/2
- Universal Plug and Play (UPnP) compliant
- Dynamic Domain Name System (DDNS)
- Virtual server and DMZ
- SNTP, DNS relay, IGMP proxy and IGMP snooping, MLD proxy and MLD snooping for video service
Firewall
- Built-in NAT Firewall
- Stateful Packet Inspection
- Prevents DoS attacks including Land Attack, Ping of Death, etc.
- Access Control
- IP / MAC / URL / Domain Filtering
Dynamic Routing
- BGP and OSPF
Quality of Service (QoS)
- IEEE 802.1Q VLAN
- Outbound Load Balancing (Round Robin, Weight, or IP Hash)
Redundancy Protocol
- Virtual Routing Redundancy Protocol (VRRP)
VPN/Tunneling
- IPSec, OpenVPN, PPTP, L2TP VPN Tunneling
- OpenVPN VPN Tunneling
- PPTP VPN Tunneling
- L2TP VPN Tunneling
- GRE (up to 8 tunnels)
- Embedded PPTP / L2TP / IPSec / OpenVPN Client and Server
- IKE Key Management
- MPPE Encryption for PPTP
- IPSec DES, 3DES, and AES encryption
Global Navigation Satellite System (GNSS)
- Simultaneous support for GPS, GLONASS, Beidou, Galileo, QZSS,
Management
- BECentral® CloudEdge Management
- Quick Installation Wizard
- Web-based GUI for remote and local management
- Firmware upgrade and configuration data upload and download via web-based
- GUI and over-the-air
- Supports DHCP server/client/relay
- TR-069 supports remote management
- SNMP v1 , v2, v3, MIB-I and MIB-ll support
- Syslog monitoring
- SMS Control function for status and reboot
Hardware Specifications
Physical Interface

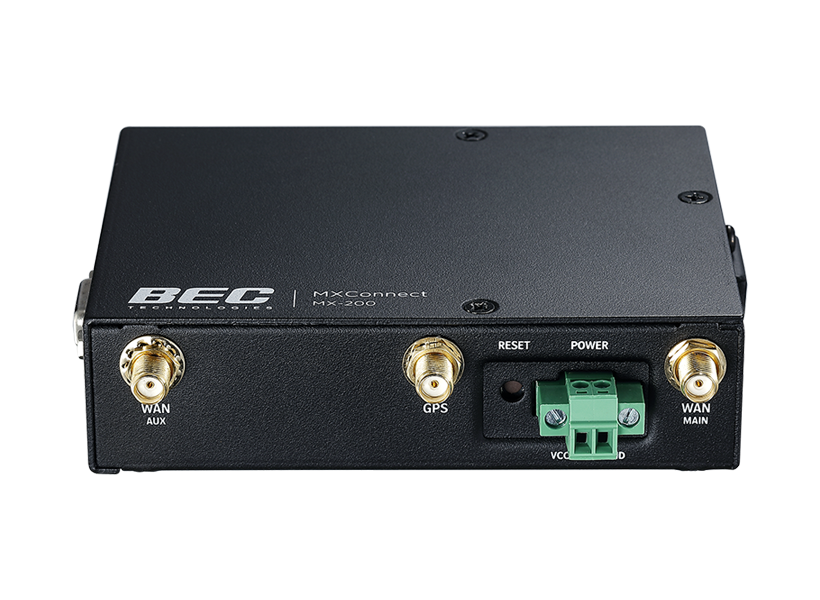

- 5G SA: Two (s) SMA Female Connectors

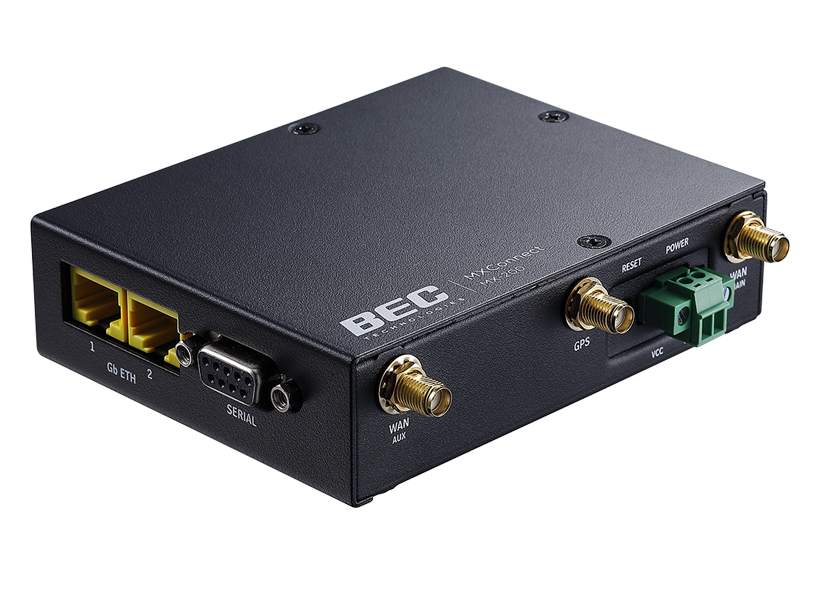

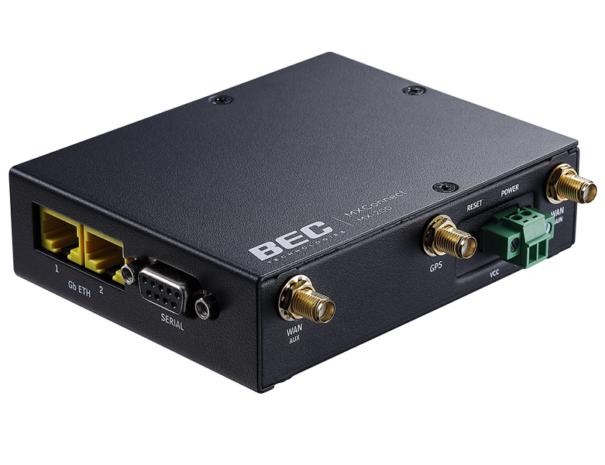

- Ethernet LAN: 2-port Gigabit Interfaces auto-crossover (MDI/ MDI-X) switch
- 1 port configurable LAN/WAN

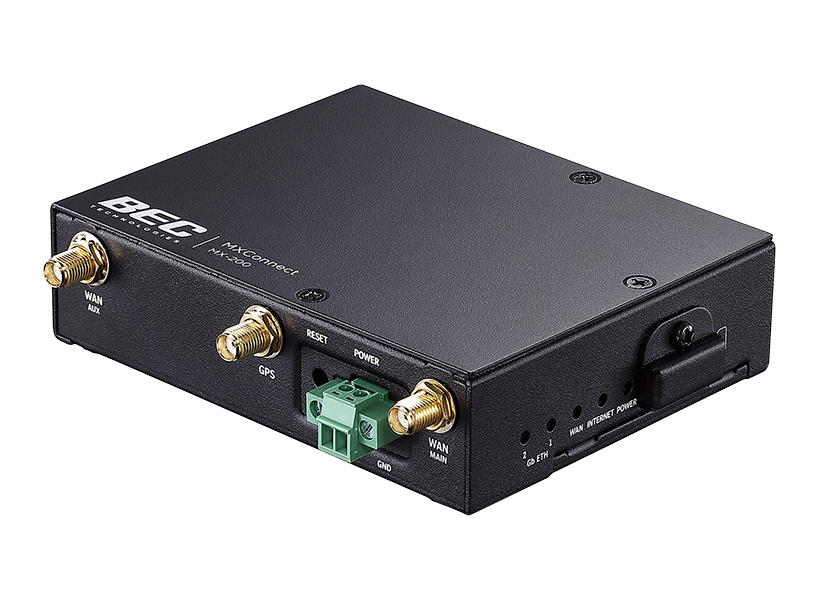

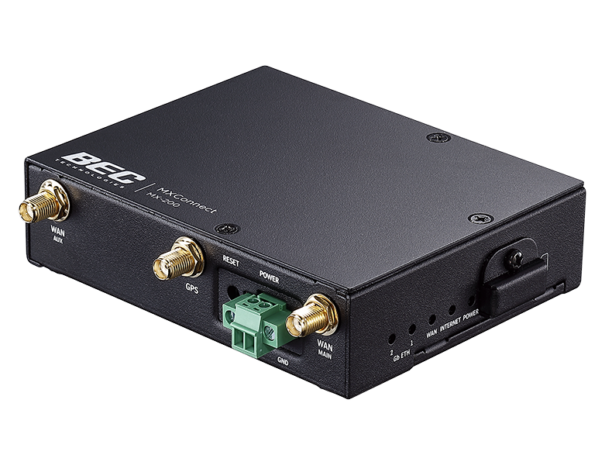

- SIM Card Slot (2FF)
- Reset button
- Power Connector: 1×2 terminal block
- Mini-USB B Type Interface (MX-320A only)
- LED indicators (Power, Internet, Signal Strength, Ethernet)
Physical Specifications
- Dimensions: 4.3 (L) x 3.3 (W) x 1.1 (H) in (109.3x 85.7 x 28.9 mm)
Weight
- 1.36lbs (0.62kg)
Power Requirements
- Input: DC 9V – 56V
Operating Environment
- Operating Temperature: -40° to 70°C (-40° to 158°F)
- Humidity: 20 ~ 95% non-condensing
Regulatory Compliance
- FCC Part 15
- FCC Part 96
- PTCRB

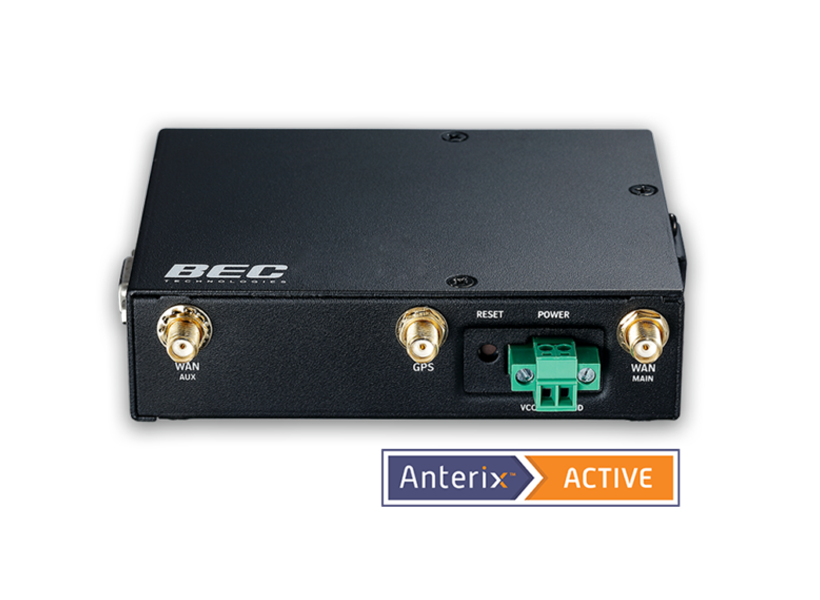

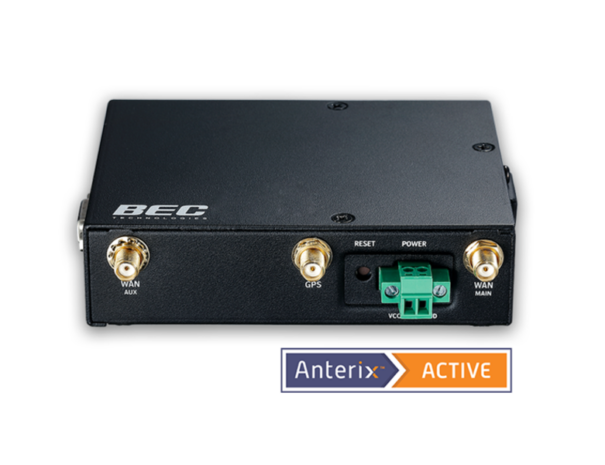

- Anterix Active
- FirstNet
