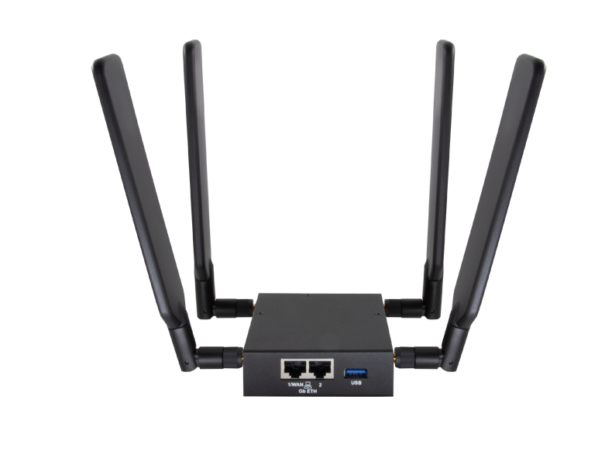

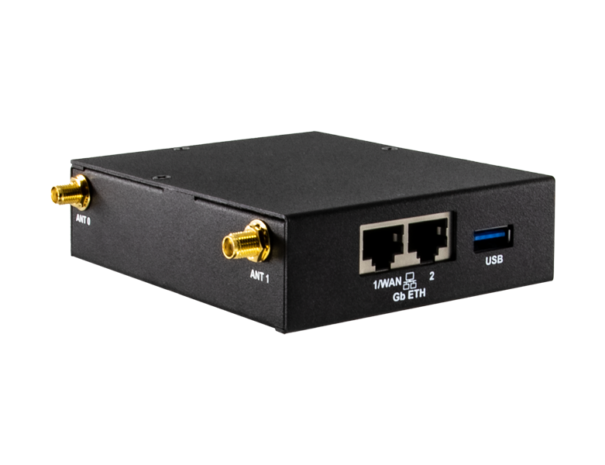

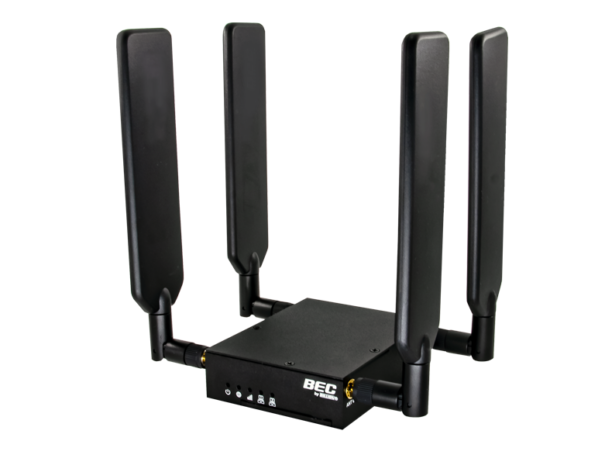

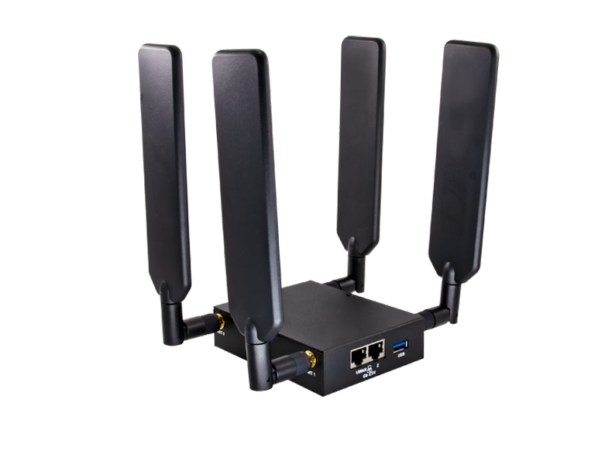

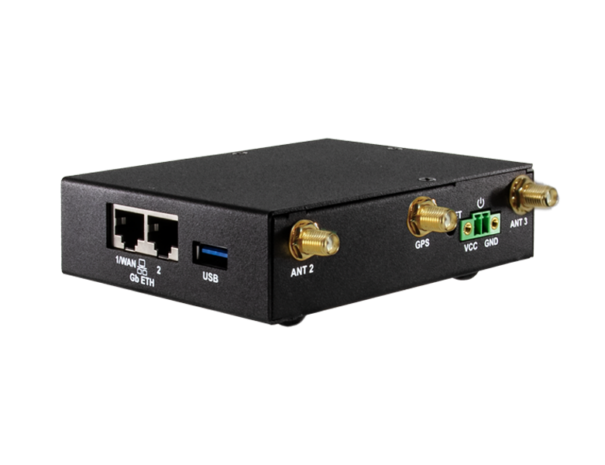

MX-220e 5G
Advanced 5G Industrial Router
The BEC MXConnect® MX-220e 5G Advanced Industrial Router is a high-performance industrial-grade router, designed to deliver reliable and secure connectivity for a broad range of M2M/IoT and industrial communication applications.
The ultra-compact platform is purposely built for limited-space installations. The device features Dual Gigabit Ethernet interfaces with configurable LAN/WAN options, Active GPS, and enterprise-level functionality such as advanced security mechanisms, Quality of Service (QoS), SPI firewall, integrated VPN, and auto-failover for unparalleled uptime and network redundancy.
The BEC MX-220e is the perfect balance of performance, ruggedness, reliability, price, and secure wireless connectivity for business-critical operations and acceleration on 5G network deployments.
Ideal Applications:
- Private Networks
- Enterprise M2M/IoT Connectivity
- SD-WAN Deployments
- Retail Network
- Industrial Connectivity
- Remote Monitoring & Control
- Mission Critical Communication
- 5G NR Network Performance and Enhanced Capacity
Designed for performance, 3GPP Release 16 compliant, MX-220e delivers lower latency and enhanced network connectivity with standalone access (SA), two-carrier sub-6 GHz aggregation, non-standalone access (NSA) dual connectivity, and up to five carrier aggregation for LTE.
- Enterprise Class Routing and Secured VPN
Dynamic Routing (OSPF and BGP) and Secured VPN (IPSec, GRE, LT2P, PPTP, OpenVPN)
- Ultra-Compact and Industrial-Grade Design
Fits in the palm of your hand, simplifying deployments & discrete mounting virtually anywhere; Industrial-grade components with extended temperature range and flexible input voltage selection.
- Managed by BECentral® CloudEdge Service Platform
BECentral® CloudEdge is an industry-leading cloud-based service platform designed to accelerate 5G and LTE Wireless WAN connectivity for deployments of any scale. The platform enables zero-touch provisioning and provides visual dashboards with real-time analytics, detailed reporting, historical analysis, performance monitoring, proactive alerts/notifications, and API extensibility for 3rd party integration.
Network Certification: UScellular
Availability and Resilience
- Multiple WAN ports (5G or Gigabit EWAN)
- Load Balancing – Maximizing bandwidth of outbound traffic
- Automatic WAN failover
Supported Frequency Bands
5G NR sub-6 GHz
- Comply with 3GPP Rel.16
- Support Frequency Range 1 Bands (SA & NSA):
n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79 - Carrier Aggregation: sub-6 GHz (FDD+FDD, TDD+TDD, FDD+TDD 2CA)
- Channel Bandwidth: Up to 120 MHz bandwidth
- Modulation: 256QAM DL / 256QAM UL
4G / LTE (Cat.19)
- Support Frequency Bands (FDD & TDD):
1, 2, 3, 4(66), 5(18,19,26), 7, 8, 12(17), 13, 14,20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 43, 46(LAA), 48, 71 - Carrier Aggregation: 5CA DL / 2CA UL
- Channel Bandwidth: 1.4/3/5/10/15/20 MHz
- Modulation: 256QAM DL / 64QAM UL
5G SX Antenna
- Low Band: 2×2 MIMO
- Mid Band / High Band: 4×4 MIMO
- 2T4R Antenna Chain
Transmitting Power
- 5G NR bands: Class 3 (23 dBm ±2 dB)
- 5G NR HPUE: bands: n38/n40/n41/n77/n78/n79 Class 2 (26 dBm ±2 dB)
- LTE bands: Class 3 (23 dBm ±2 dB)
- LTE HPUE bands: B38/B41/B42/B43 Class 2 (26 dBm ±2 dB)
Data Transmission
- 5G NSA: DL 3.2Gbps (DL) / 600Mbps (UL)
- 5G SA: DL 2.4Gbps (DL) / 900Mbps (UL)
- 4G/LTE: DL 1.6Gbps / UL 200Mbps
(The presented data rates are theoretical only)
Network Protocols and Features
- IPv4, IPv6, IPv4 / IPv6 dual stack
- IPv6 in IPv4 (6RD) / IPv4 in IPv6 (DS-Lite) / IPv6-464XLAT
- Dual APN
- Keep Alive
- NAT, static routing and RIP-1/2
- Universal Plug and Play (UPnP) compliant
- Dynamic Domain Name System (DDNS)
- Virtual server and DMZ
- SNTP, DNS relay, IGMP proxy and IGMP snooping, MLD proxy and MLD snooping for video service
Firewall
- Built-in NAT Firewall
- Stateful Packet Inspection
- Prevents DoS attacks including Land Attack, Ping of Death, etc.
- Access Control
- IP / MAC / URL / Domain Filtering
Dynamic Routing
- BGP and OSPF
Quality of Service (QoS)
- IEEE 802.1Q VLAN
- Outbound Load Balancing (Round Robin, Weight, or IP Hash)
Redundancy Protocol
- Virtual Routing Redundancy Protocol (VRRP)
VPN/Tunneling
- IPSec, OpenVPN, PPTP, L2TP VPN Tunneling
- OpenVPN VPN Tunneling
- PPTP VPN Tunneling
- L2TP VPN Tunneling
- GRE (up to 8 tunnels)
- Embedded PPTP / L2TP / IPSec / OpenVPN Client and Server
- IKE Key Management
- MPPE Encryption for PPTP
- IPSec DES, 3DES, and AES encryption
Global Navigation Satellite System (GNSS)
- Embedded GNSS Engineer for GPS or GLONASS
Management
- BECentral® CloudEdge Management
- Quick Installation Wizard
- Web-based GUI for remote and local management
- Firmware upgrade and configuration data upload and download via web-based
- GUI and over-the-air
- Supports DHCP server/client/relay
- TR-069 supports remote management
- SNMP v1 , v2, v3, MIB-I and MIB-ll support
- Syslog monitoring
- SMS Control function for status and reboot
Hardware Specifications
Physical Interface
- 5G: Four (4) SMA Female Connectors
- Ethernet LAN: 2-port Gigabit Interfaces auto-crossover (MDI/ MDI-X) switch
- 1 port configurable LAN/WAN
- Dual SIM Card Slot (3FF)
- eSIM (Embedded SIM) – *planed
- Mini-USB B Type Receptacle
- Reset button
- Power Connector: 1×2 terminal block
- LED indicators (Power, Internet, Signal Strength, Ethernet)
Physical Specifications
- Dimensions: 4.3 (L) x 3.3 (W) x 1.1 (H) in (109.3x 85.7 x 28.9 mm)
Weight
- 1.36lbs (0.62kg)
Power Requirements
- Input: DC 9V – 56V
Operating Environment
- Operating Temperature: -40° to 70°C (-40° to 158°F)
- Humidity: 20 ~ 95% non-condensing
Regulatory Compliance
- FCC Part 15
- FCC Part 96
- PTCRB
